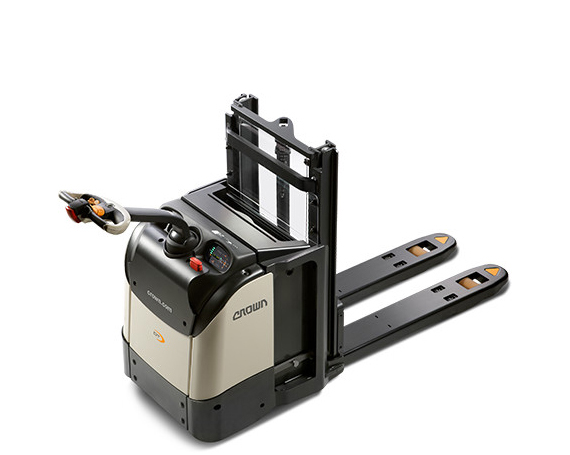

The Crown double stacker is an ideal forklift for high-density, stock-to-dock applications – combining the abilities of a heavy-duty stacker, the flexibility of a pallet truck, plus the capacity to transport two 1000 kg pallets.
The DT Series double stacker is designed to deliver performance so operators can be as productive as possible all shift long.
Crown’s Active Traction, fitted as standard on models with electronic steering, continually varies the pressure on the drive tyre depending on steering angle, fork height, load distribution, speed, acceleration and braking to increase traction, manoeuvrability and responsiveness. An intelligent tactile feedback feature adjusts steering force based on ambient operating conditions.
Crown's double stacker is built to withstand the constant challenges of warehouse environments – so it can deliver the reliability and uptime you count on.
Sturdy nested I-beam mast, a cast-steel reinforced chassis, 10 mm thick protective skirt, 5 mm wraparound covers, die-cast aluminum handle and the toughest side restraints available ensure long life in the toughest environments.
A spring-loaded drive unit with heavy-duty castors makes a critical difference in durability and traction control.
It’s a fact: operators who are comfortable and confident are more productive than those who are not. That’s the motivation behind Crown’s commitment to forklift design and ergonomics.
The patented weight-adjustable FlexRide platform provides ultimate rider comfort by tuning the suspension to the operator’s bodyweight. The entry bar switch on fixed-platform models provides the operator with additional protection.
Crown’s advanced suspension significantly reduces shock to the chassis, platform, and other stacker components. In addition, the hydraulic system responds instantly and proportionally to operator commands for fast, precise positioning of forks and loads.
In terms of productivity, control, durability and versatility, the Crown DT Series far exceeds typical expectations for double stacker pallet trucks. With double-deck lorries, the advantages stack up even further. You can save shipping costs, valuable dock and floor space while increasing throughput.

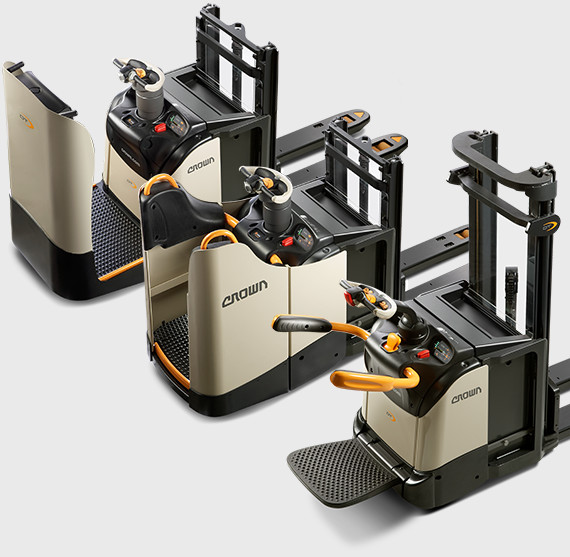

The double stacker series is available in four configurations offering travel speeds of up to 12.5 km/h.
With Crown, damage billing for side restraints is a thing of the past.
Crown’s heavy-duty side restraints feature 50 mm diameter heavy-wall steel tubing and a rugged C-clamp mounting system. We’re so confident in the strength and durability of our folding side restraints that they're guaranteed for the life of the stacker for the original owner.
Strength and durability to survive in the real world.
Guaranteed.
Crown builds long-term value into all of its forklift trucks and the DT Series double stacker is no exception.
With Crown’s unique vertically integrated manufacturing and aftermarket services, total cost of ownership can be substantially lower over time.

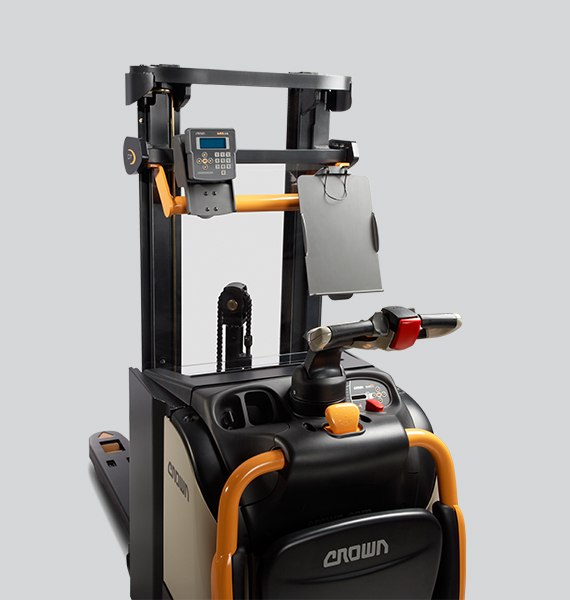

Work Assist accessories support operator comfort and productivity.

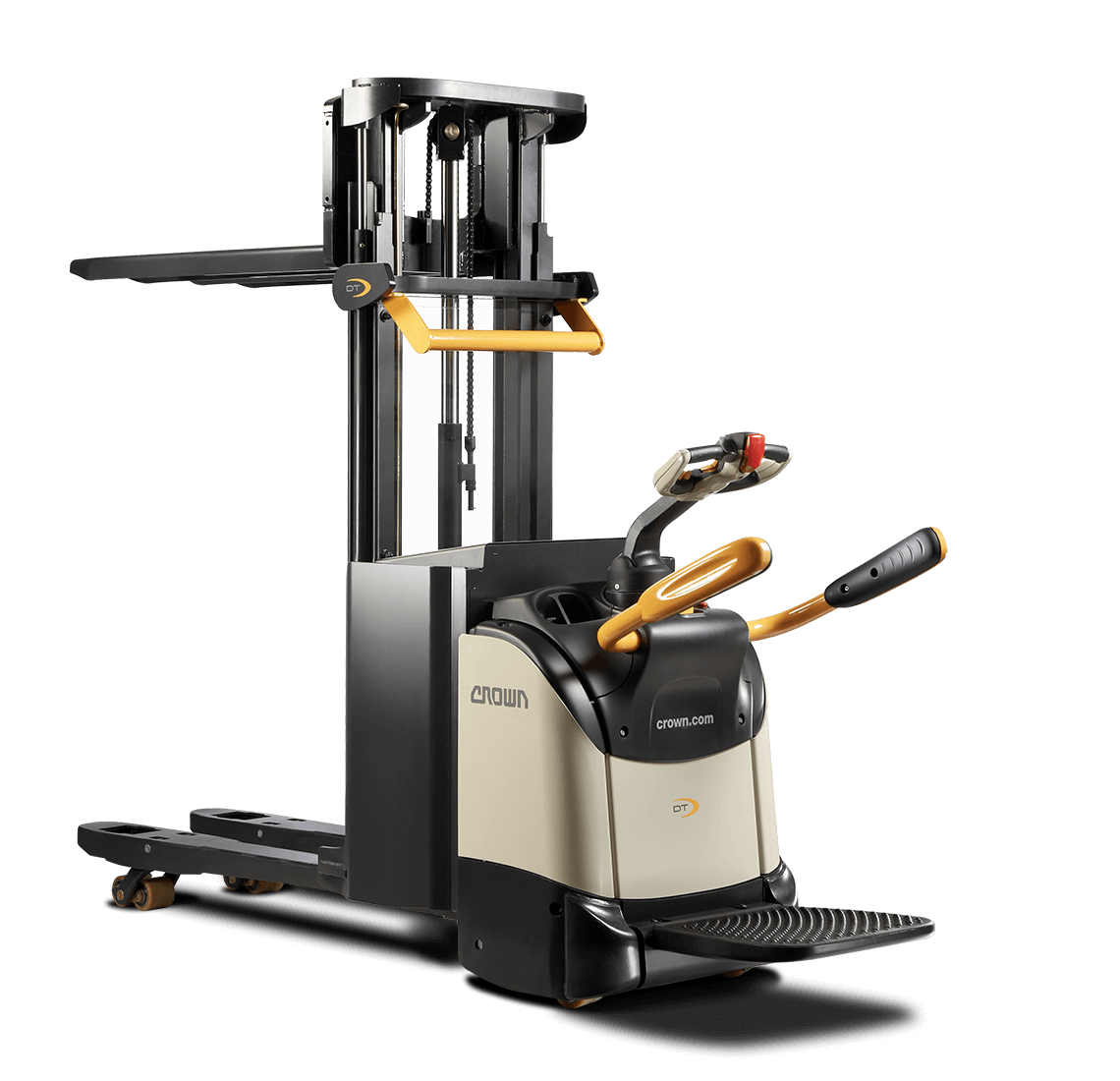

The DT double stacker is an ideal forklift for high density applications, allowing you to easily double up pallet loads.
Load Capacity
2000 kg
Max Lift Height
2600 mm
Power
24 V / 240 - 375 Ah
Head Length
836 - 908 mm
Width Overall
744 mm
Fork Length
1150 mm
The DT double stacker with Crown's exclusive fold-up FlexRide platform allowing operators to select between rider or pedestrian functionality.
Load Capacity
2000 kg
Max Lift Height
2600 mm
Power
24 V / 375 Ah
Head Length
978 - 1438 mm
Width Overall
744 mm
Fork Length
1150 mm
The DT double stacker with side-entry fixed platform features an operator backrest that adds protection and comfort, especially useful for transport and order picking.
Load Capacity
2000 kg
Max Lift Height
1670 mm
Power
24 V / 375 Ah
Head Length
1553 mm
Width Overal
744 mm
Fork Length
1150 mm
The DT double stacker with rear-entry fixed platform is ideal for high traffic areas or long runs. The rear entry creates a secure, comfortable compartment for the operator.
Load Capacity
2000 kg
Max Lift Height
1670 mm
Power
24 V / 375 Ah
Head Length
1472 mm
Width Overall
744 mm
Fork Length
1150 mm
V-Force Lithium-Ion Energy Storage Systems can improve performance and productivity. They offer a very short charging time, tolerate unlimited opportunity charging, and simplify battery management by avoiding the need for daily maintenance, spare batteries or special rooms for charging.
Heavy-duty dual castor wheels perform in even the harshest applications, including rough floors, long runs and extreme heat.
Freezer conditioning allows the double stacker to maintain performance in cold storage facilities.
The steel-constructed load backrest stabilises loads and prevents pallet movement.
The dual initial lift controls allow operators to control the position of the load arms with either hand.
