V-Force V-HFM³Forklift Battery Chargers

One Forklift Battery Charger To Satisfy Every Need

We're revolutionizing module forklift battery charging with a range of smart, connected and efficient multi-voltage battery chargers.

Inquire about the V-HFM³

Watch the V-HFM³ Video

Features
Models and Specifications
Options and Accessories

Extraordinary Energy Efficiency

With efficiency levels up to 97 percent, the V-HFM³ is more efficient than many other high frequency chargers on the market. It intelligently optimizes charge rate based on various factors to help reduce charging time and expense.

More power has been packed into a smaller, stackable footprint that also saves space and energy.

An Intelligent Battery Charging Assistant

Smart sensors and intelligent displays, including automatic voltage sensing and color LED indicator lights, make charging easy, safe and reliable. Automatically apply the correct charging profile upon connection without the use of a monitoring device.

Flexibility for the Future

Charge virtually any lift truck battery in your operation while supporting both lead-acid and lithium-ion batteries as well as future technology changes. This is a high-efficiency forklift battery charger that evolves with your changing business needs.

Connected Capabilities

Configure, monitor and manage batteries and chargers remotely. V-HFM³ can be integrated with each other in and with other systems, such as Crown's V-Force Battery Monitoring Identification Device (BMID), for additional levels of reporting and control.

Simple Battery Queuing (SBQ)

Multiple V-HFM³ chargers configured in charging pools can perform optional simple battery queuing (SBQ), monitoring either the highest state of charge or the longest charge time to indicate which is the next available battery. The system issues a warning when the wrong battery is selected. SBQ is an optional licensed software feature on the HFM³ charger.

demand response management connectivity feature

Demand Response Management (DRM)

Demand Response Management (DRM) is an optional licensed connectivity feature that enables a charger group to manage its energy demand and cost. Triggers can include spot pricing limits, target peak loads, limited infrastructure or a device supplied by the utility company.

Three Phase V-HFM³ Battery Chargers

FS3 300 A Forklift Battery Charger

208-600V Three Phase Charger
Lead-Acid or Lithium-Ion capable
Multi-voltage charge capacity: charges 24V, 36V, 80V and 96V
Output options up to 300 amps
Auto equalizations by cycles or date/time

Inquire About FS3 Chargers

Buy Now

FS4 400 A Forklift Battery Charger

208-600V Three Phase Charger
Lead-Acid or Lithium-Ion capable
Multi-voltage charge capacity: charges 24V, 36V, 80V and 96V
Output options up to 400 amps
Auto equalizations by cycles or date/time

Inquire About FS4 Chargers

Buy Now

FS6 600 A Forklift Battery Charger

208-600V Three Phase Charger
Used for lead-acid fast charging applications
Multi-voltage charge capacity: charges 24V, 36V, 80V and 96V
Output options up to 600 amps
Auto equalizations by cycles or date/time

Inquire About FS6 Chargers

Buy Now

Single Phase V-HFM³ Battery Chargers

FS1 240 A Forklift Battery Charger

100-277V Single Phase Charger
Lead-Acid or Lithium-Ion capable
Multi-voltage charge capacity: charges 12V, 24V, 36V and 48V
Output options of 48A, 85A, 120A and 240 amps
Auto equalizations by cycles or date/time

Inquire About FS1 Chargers

FS1 48/85/120 A Forklift Battery Charger

100-277V Single Phase Charger
Lead-Acid or Lithium-Ion capable
Multi-voltage charge capacity: charges 12V, 24V, 36V and 48V
Output options of 48A, 85A and 120 amps
Auto equalizations by cycles or date/time

Inquire About FS1 Chargers

Multi-Voltage Forklift Battery Charger Options and Accessories

Battery Monitoring Identification Device (BMID)

The optional BMID module is designed to mount on top of a lead-acid battery. It detects low electrolyte level and clearly communicates the need to water. The BMID monitors voltage and temperature, and then adjusts charge rate for optimum performance.

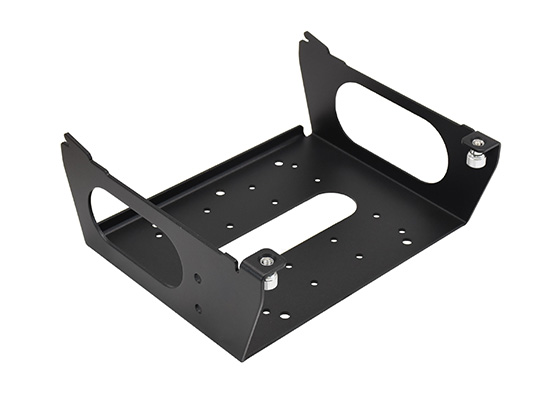

Mounting Hardware

The mounting bracket offers the ideal mounting solution for the FS3 charger cabinet, supporting up to 50 lbs. The charger can be mounted from the rear, side or bottom.

Wall Mount Shelf Bracket, Mounting Bracket, L-Bracket

Battery Charger Stand

The versatile design offers multiple configuration options to install chargers at the point of use, freeing up warehouse floor space. The stands are anchored to the floor and the chargers placed at optimal working height.

Remote Switch

The remote switch provides easy access to charger functions when the charger must be mounted in a hard-to-reach location.

Pogo Stick

Pogo sticks are used in conjunction with charging stands to securely store battery cables away from the floor. They provide operators with easy access at optimal work height while preventing wear and tear on cables and connectors. The heavy-duty pogo stick is the standard option for all HFM³ Series chargers.

Tower Light Kit

LED light indicates battery charge status from a distance. The kit includes all mounting hardware.

Simple Battery Queuing (SBQ)

Simple battery queuing uses a pool of connected chargers to identify the best available battery for use by tracking the highest state of charge (BMID required) or the longest charge time of all batteries in the pool. The next battery to return to service is identified on the connected charger’s display. An error message is generated if the wrong battery is disconnected from a charger in the pool.

Demand Response Management (DRM)

The demand response management feature enables grouping of chargers to reduce their combined energy demand by working together to meet specified energy consumption limits. A controller charger in each group reacts to triggers with programmed responses implemented across the charger group. Multiple groups of connected chargers can coexist on a single network.

connected chargers with controller charger

Support You Can Count On

With a nationwide network of service locations, Crown offers integrated support solutions for lift trucks, chargers and batteries. Ask Crown about an individualized energy consultation and receive recommendations based on your specific needs and goals.

Request a Consultation

Shop V-Force Parts and Accessories
